10-90kV XLPE Submarine Cable

Application

This cable is designed for power transmission to offshore islands, oil platforms, and across water bodies. They offer fast, cost-effective installation without the need for tunnels or support brackets.

If you need specification beyond our standard range, please contact with us by email, tailored quotation will be in your inbox!

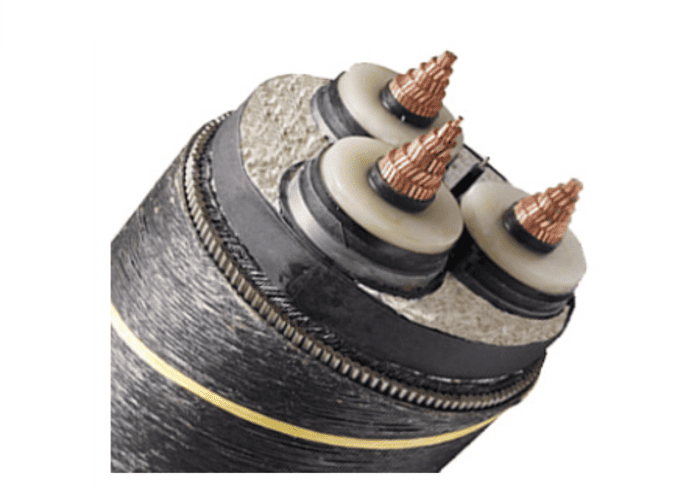

Structure

Conductor

Class 2 Stranded compacted copper,water blocked

Conductor Screening

Extruded semi-conductive compound

Insulation

XLPE (Cross-Linked Polyethylene) or TR-XLPE

Insulation Screening

Extruded semi-conductive compound

Waterproof layer

semi-conductive waterproof tape

Screen

Copper tapes

Separator

Plastic foil

Core Sheath

PE

Fillers

Polypropylene filler

Separator

Binder tapes

Bedding Layer

Polypropylene strings

Armor

Galvanized steel wires

Color

Identification as per international standards

Technical data

Voltage Rating

10-90kV

Standards

IEC 60228, IEC 60502, IEC 60840, IEC 62067

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
