12/20 (24)kV Aluminum MV Cable IEC 60502-2 LSZH Halogen Free IEC 60754-1/2

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for medium voltage power networks and power distribution,generation units and industrial plant connections for direct undergroud burial in utility networks,UV resistant,Low smoke Halogen Free IEC 60754-1/2.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

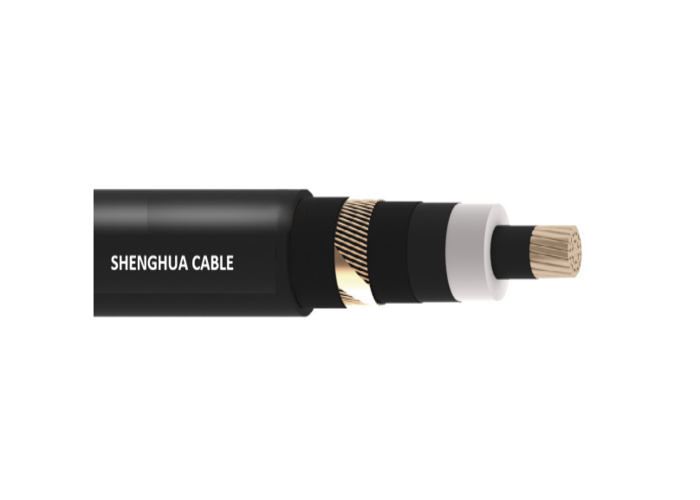

Structure

Conductor

Class 2 stranded Aluminium

Conductor Screen

Extruded Inner Semi Conductor (Bonded Type)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Extruded Outer Semi Conductor (Strippable Type)

Screen

Copper Wires With Open Helix Copper Tape

Tape

Semi Conductive water blocking Tape

Aluminium Tape

Applied Longitudinally

Outer Sheath

PO

Color

Customized as per standards

Technical data

Voltage Rating

12/20 (24)kV

Temperature Rating

Maximum Conductor Operating Temperature: +90ºC

Maximum Screen Operating Temperature: +80°C

Maximum Conductor Temperature During S.C: +250°C

Minimum Bending Radius

20 x overall diameter

Standards

IEC 60502-2

Halogen Free IEC 60754-1/2

Water Resistant EN60529- AD7

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
