250/250V LiHCH Screened LSZH Control Cable

Application

When you are managing power networks and power distribution project, this cable is a good option, which is designed for secure signal transmission and interconnection within measurement and control systems. Rated for dry, damp, and wet indoor environments, they are fully approved for concealed installations under plaster, ensuring elevated fire safety and operational reliability.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

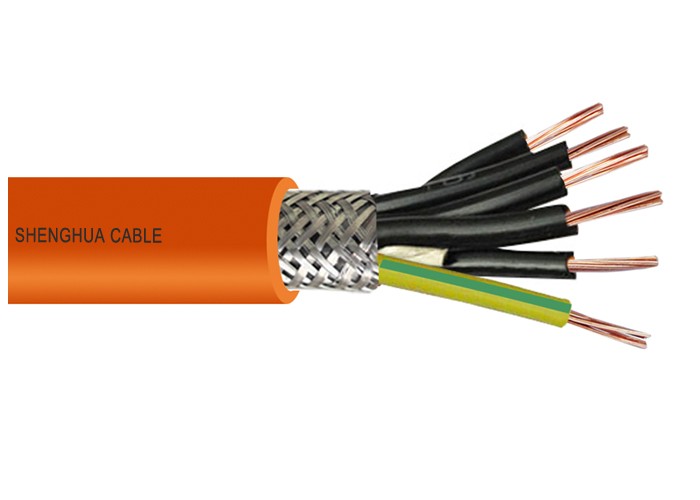

Structure

Conductor

Class 5 fine-stranded copper conductor

Insulation

LSZH (Low Smoke Zero Halogen)

Screen

TCWB (Tinned Copper Wire Braid)

Sheath

LSZH (Low Smoke Zero Halogen)

Color

Customized as per standards

Technical data

Voltage Rating

250V

Temperature Rating

Fixed: -30ºC to +70ºC

Minimum Bending Radius

Fixed: 7.5 x overall diameter

Fixed: 15 x overall diameter

Standards

IEC/EN 60754-1/2, IEC/EN 61034-1/2

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
