2X(st)Y SWAH PVC Instrumentation Cable EN 50288-7/EN 50288-1/EN 60228

Application

When you are managing the process plants such as petrochemical plants or other process facilities, you can use these instrumentation cables to deliver the reliability you require to keep your instrument circuits and communication services running smoothly. LSZH models will protect your staff or equipment if your project is in a high-risk area where there may fire, smoke, and toxic fumes. This model is with safety design. You should install these cables in cable trays or ducts, as they are not designed for direct burial.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

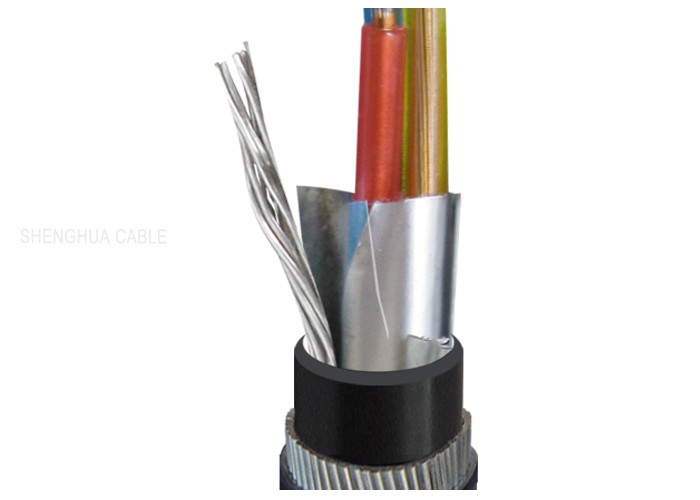

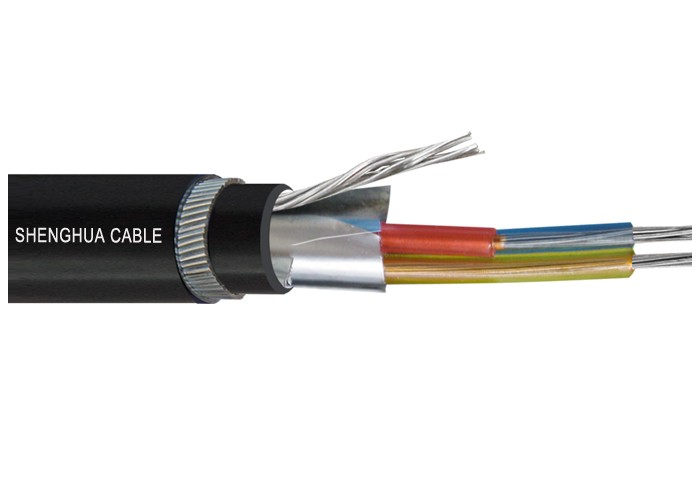

Structure

Conductor

0.5mm² - 0.75mm²: Class 5 flexible Copper

1mm² and above:    Class 2 stranded Copper

Insulation

XLPE (Cross-Linked Polyethylene)

Collective Screen

Al/PET (Aluminium/Polyester Tape) +Drain Wire (tinned copper)

Inner Sheath

LSZH (Low Smoke Zero Halogen)

Armour SWA

Galvanised steel wires

Outer Sheath

LSZH (Low Smoke Zero Halogen) - UV Resistant

Color

Can be customized

Technical data

Voltage

300/500V

Operating Temperature:

Fixed: -40°C to +80°C

Flexed: 0°C to +50°C

Minimum Bending Radius

6 x overall diameter

Standards

EN 50288-7/EN 50288-1/EN 60228

Flame Retardant refer to IEC/EN 60332-1-2, IEC/EN 60332-3-24

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
