3.8/6.6kV AWA/SWA Armoured LSZH MV Cable IEC/EN 60754,IEC 61034

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for utility distribution networks, generation units, and industrial plant connections. Engineered for versatile deployment across direct burial, cable duct, indoor, and outdoor installations.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

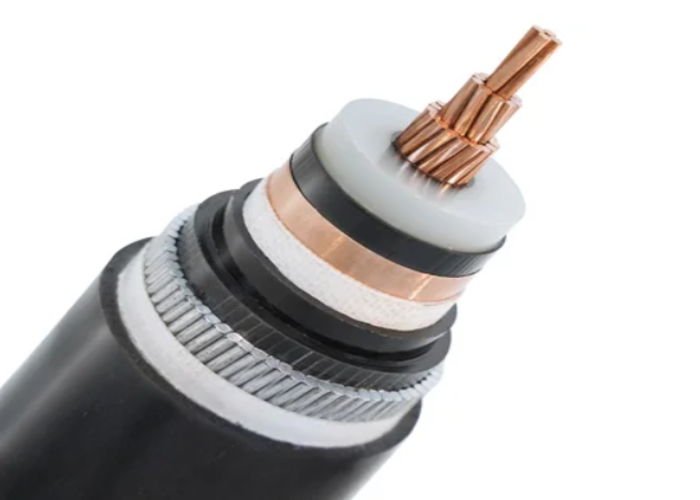

Structure

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen

Concentric copper wires and copper tape

Separator

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Inner Sheath

LSZH (Low Smoke Zero Halogen)

Armour

Single core: AWA (Aluminium Wire)

Multi core: SWA (Galvanised steel wire)

Sheath

LSZH (Low Smoke Zero Halogen)

Color

Customized as per standards

Technical data

Voltage Rating

3.8/6.6 (7.2) kV

Temperature Rating

Fixed: -15°C to +90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

Single core: 15x overall diameter

Multi core: 12 x overall diameter

Standards

BS 7835, IEC/EN 60228

Flame Retardant according to IEC/EN 60332-1-2,IEC/EN 60332-3-24

Low Smoke Halogen Free according to IEC/EN 60754-1/2, IEC/EN 61034-1/2

UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
