3.8/6.6kV Aluminium XLPE AWA/SWA Armoured LSZH MV Cable BS 7835

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for utility distribution networks, generation units, and industrial plant connections. Engineered for versatile deployment across direct burial, cable duct, indoor, and outdoor installations.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

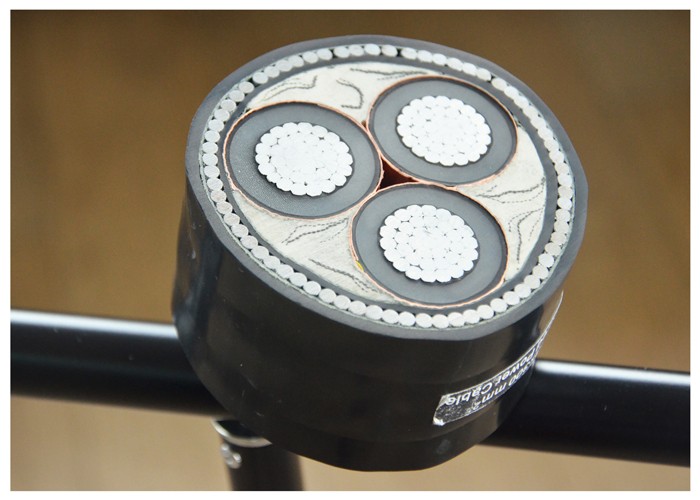

Structure

Conductor

Class 2 compacted aluminium conducto

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation Screen

Concentric copper wires and copper tape

Armour

Single core: AWA (Aluminium Wire)

Multi core: SWA (Galvanised steel wire)

Sheath

LSZH (Low Smoke Zero Halogen)

Color

Customized as per standards

Technical data

Voltage Rating

3.8/6.6 (7.2) kV

Temperature Rating

Fixed: -15°C to +90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

Single core: 15x overall diameter

Multi core: 12 x overall diameter

Standards

BS 7835, IEC/EN 60228,

Low Smoke Zero Halogen acc. to IEC/EN 61034-1/2, IEC/EN 60754-1/2,

Flame Retardant acc. to IEC/EN 60332-1-2, IEC/EN 60332-3-24

UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
