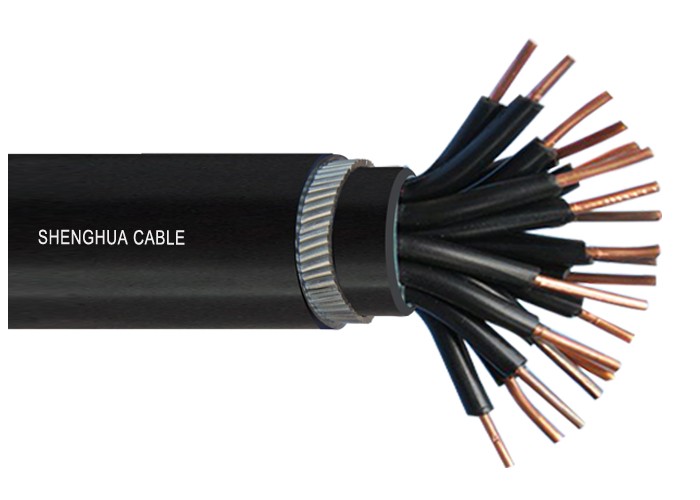

300/500V SY PVC (YSLYSY) Control Cable

Application

When you are managing power networks and power distribution project, this cable is a good option, which is designed for instrumentation, control systems, and tooling machinery on production lines. They accommodate unrestrained movement without tensile stress in dry, damp, and wet indoor environments. The robust steel braid provides dual functionality: superior protection against mechanical transverse loads and an effective magnetic screen against interference.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible plain copper

Insulation

PVC (Polyvinyl Chloride)

Inner Sheath

PVC (Polyvinyl Chloride)

Armour

GSWB (Galvanised Steel Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Color

Customized as per standards

Technical data

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter

Standards

VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
