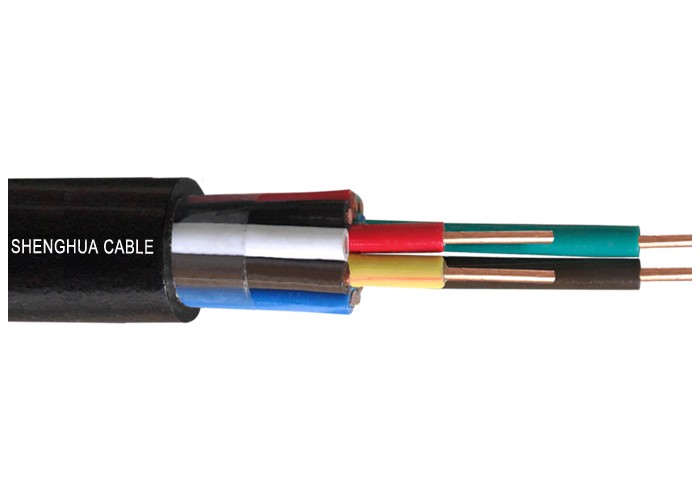

300/500V YY PVC (YSLY) Control Cable

Application

When you are managing power networks and power distribution project, this cable is a good option, which is designed for instrumentation, control systems, and tooling machinery within automated production lines. It is specifically designed to accommodate free, unrestricted movement in applications devoid of tensile stress. Rated for dry, damp, and wet indoor environments, this unshielded cable is strictly restricted to indoor use and must not be installed outdoors or directly buried underground.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible plain copper

Insulation

PVC (Polyvinyl Chloride)

Sheath

PVC (Polyvinyl Chloride)

Color

Customized as per standards

Technical data

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

Standards

VDE 0207-363-3, VDE 0482-332-1-2, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
