76/132 (145) kV CU XLPE Insulated HDPE High Voltage Cable IEC 60840

Application

This cable is designed for power distribution, generation, and industrial plants. Featuring water-blocking tape to prevent moisture propagation, they are suitable for versatile installations: indoors, outdoors, underground, underwater, or in cable ducts.

If you need specification beyond our standard range, please contact with us by email, tailored quotation will be in your inbox!

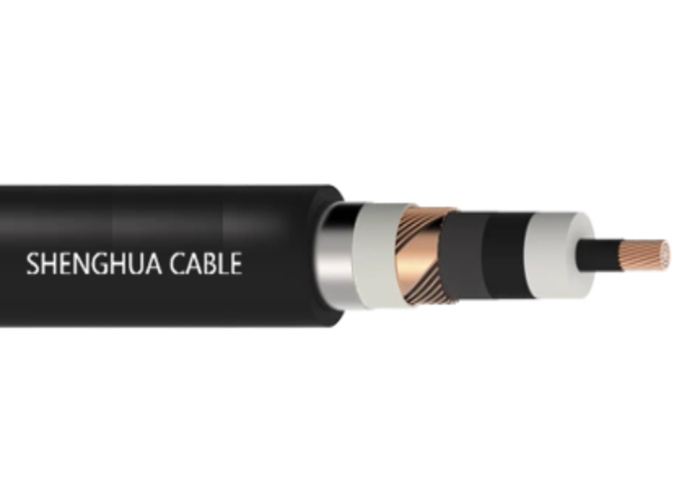

Structure

Conductor

Copper conductor (optional watertightness – WTC)

Conductor Screen

Semi-conductive screen extruded on the phase conductor

Insulation

 XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive screen extruded on insulation

Wrapping

Semi-conductive water swelling tape

Metallic Screen

Copper wires and equalising tape

Wrapping

Semi-conductive water swelling tape

Tape

Longitudinally applied aluminium tape coated with PE copolymer

Sheath

HDPE (High Density Polyethylene)

Color

Identification as per international standards

Technical data

Voltage Rating

76/132 (145) kV

Standards

IEC 60840

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
