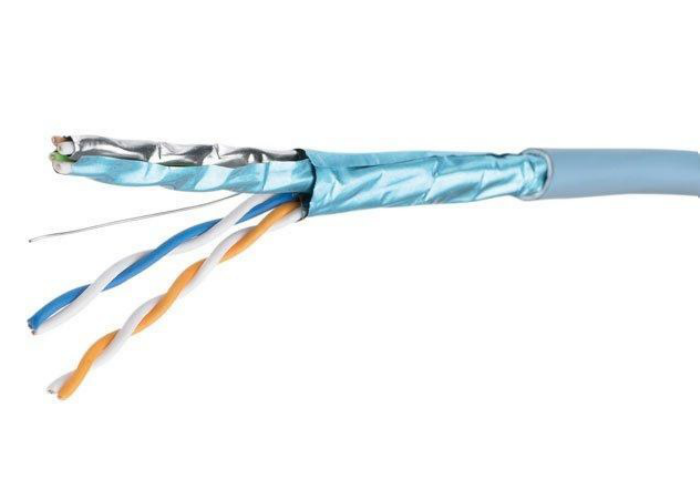

Cat 5E FTP PVC LAN Cable

Application

This cable is designed for data transmission. Cat5E supports frequencies up to 100MHz and transmission speeds up to 1 Gbps (Gigabit Ethernet).

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 1 solid copper conductor

Insulation

HDPE (High Density Polyethylene)

Drain Wire

Tinned copper

Screen

Aluminium foil

Sheath

PVC (Polyvinyl Chloride)

Color

Identification as per international standards

Technical data

Operating Temperature:

Fixed: -20°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 8 x overall diameter

Standards

IEC 11801, TIA 568C.2

Flame Retardant according to BS EN/IEC 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards

Production
