Standard Fire Resistant Cable BS7629-1 IEC/EN 60754-1/2

Application

These standard fire resistant cable is designed for general use, standard fire-resistant cables ensure fire detection, alarm, and emergency lighting systems remain operational for a period of time during a fire.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

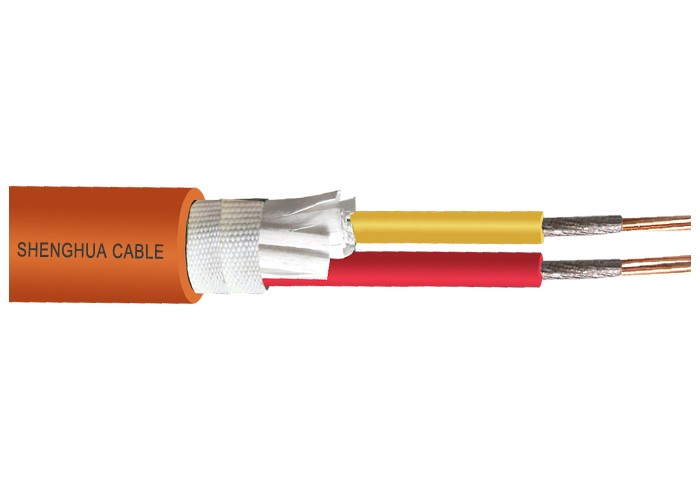

Structure

Conductor

1.5mm2 - 2.5mm2 : Class 1 solid Copper

4mm2 and over: Class 2 stranded Coppe

Insulation

High performance fire resistant silicone rubber

Overall Screen

Al/PET (Aluminium/Polyester Tape)

Circuit Protective Conductor

Tinned copper

Outer Sheath

LSZH (Low Smoke Zero Halogen)

Color

Identification as per international standards

Technical data

Voltage Rating

300/500V

Operating Temperature

-40°C to +90°C

Minimum Bending Radius

6 x overall diameter

Standards

BS 7629-1, BS 5839-1, BS EN 50200-PH30-PH60-PH90- PH120, BS 6387, BS 5266-1, BS 8519, BS EN 60228

Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
