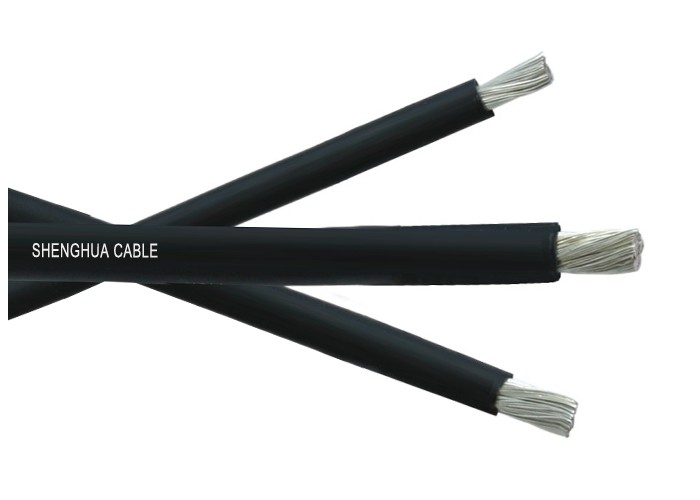

Tinned CU XLPO Jaket Solar Photovoltaic Cable

Application

When you are managing power networks and power distribution project, this PV cable is a good option, which is designed for for the interconnection of photovoltaic (PV) systems, including large-scale solar arrays. Rated for both internal and external fixed installations, it can be routed through conduits or integrated directly into systems.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible tinned copper conductor

Insulation

Halogen-free cross-linked compound

Sheath

Polyolefin Copolymer electron-beam cross-linked TUV2PfG/1169

Color

Identification as per international standards

Technical data

Voltage Rating

AC: 1000/1000V

DC: 1500/1500V

Maximum Voltage (Umax)

1800V

Temperature Rating

Fixed: -40°C to +90°C

Minimum Bending Radius

5 x overall diameter

Maximum Conductor Temperature

+120°C (for 20000h)

Standards

EN 50618, TÜV 2 PfG 1169/08.2007, EN 50288-3-7, EN 60068-2-78, EN 50395

Flame retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2,

IEC/EN 61034-1/2, EN 50267-2-2

Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3,

Water Resistant to AD8

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
