YSLCY 0.6/1kV CU PVC Sheathed Control Cable

Application

When you are managing power networks and power distribution project, this cable is a good option, which is designed specifically for instrumentation, control systems, and tooling machinery on production lines. They are designed to accommodate unrestrained, free movement in applications devoid of tensile loads. Environmentally rated for dry, damp, and wet indoor spaces, these cables are strictly prohibited from outdoor or underground installation.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

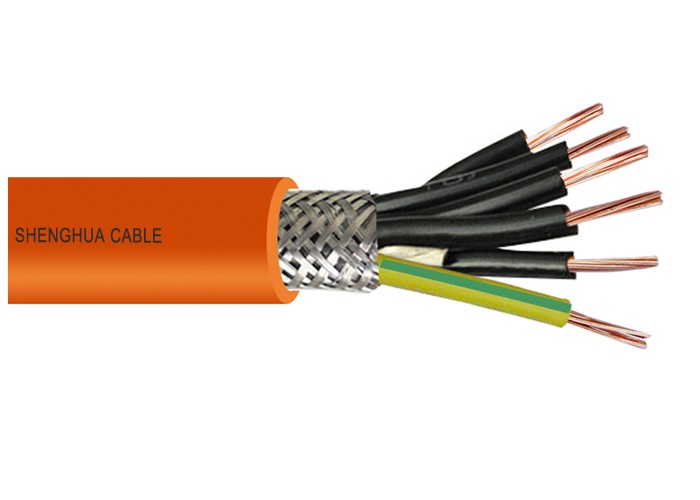

Structure

Conductor

Class 5 flexible plain copper

Insulation

PVC (Polyvinyl Chloride)

Separator

PET (Polyester Tape

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PVC (Polyvinyl Chloride)

Color

Customized as per standards

Technical data

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

Standards

VDE 0207-363-3, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
