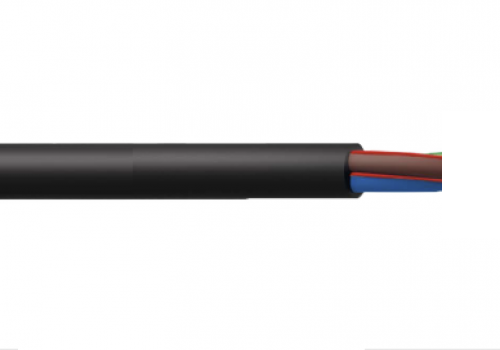

H05BZ5-F EV Car Mode 1/2 Connection Cable EN 50620/ IEC 62893

Application

This cable is designed for European AC charging Modes 1, 2, and 3. Ideal for trailing EV plug connections in domestic, commercial, or public settings.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible stranded Copper

Insulation

Rubber Compound type EV1-2

Control/Pilot Cores

Class 5 Flexible Copper with Rubber insulatio

Sheath

PUR-HF (Polyurethane, Halogen-Free)

Color

Identification as per international standards

Technical data

Voltage Rating

300/500V

Operating Temperature

Operating: -40°C to +90°C

Minimum installation and use temperature: -40°C

Maximum temperature of short circuit: +250°C

Minimum Bending Radius

6 x Overall Diameter

Standards

EN 50620, IEC 62893, EN/IEC 60228, IEC 60811-404, IEC 60332-1-2, IEC 60811-100, EN 62230, IEC 61851-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
