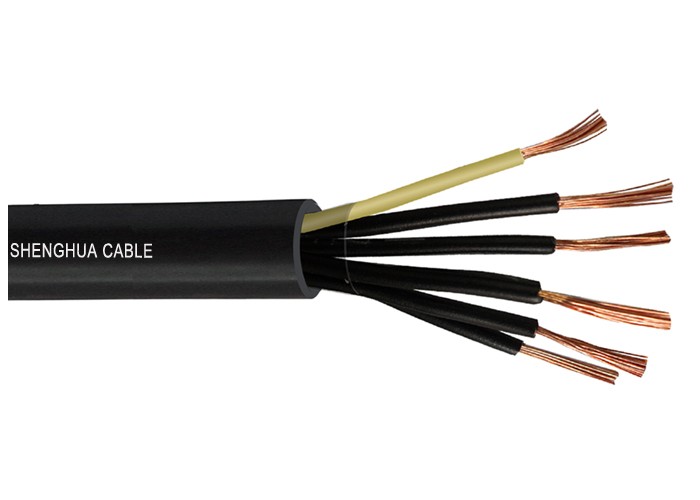

0.6/1kV CU PVC Sheathed Control Cable

Application

When you are managing power networks and power distribution project, this cable is a good option, which is designed for reliable peformance across power distribution, process control and instrumentation applications. Its durable jacket provides excellent protection against everyday industrial chemicals, oils and greases.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible stranded bare copper

Insulation

PVC (Polyvinyl Chloride)

Outer Sheath

Special PVC-Compound (Polyvinyl Chloride)

Color

Customized as per standards

Technical data

Voltage Rating

0.6/1kV

Temperature Rating

Fixed: -20ºC to +70ºC

Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed Installation: 4 x overall diameter

Flexed Application: 7.5 x overall diameter

Standards

IEC/EN 60811-404

Fire Retardant according to: IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
