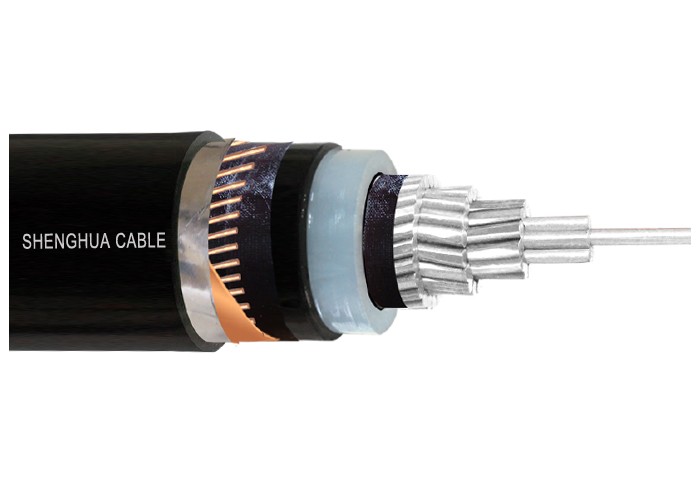

Voltage: 12/20 (24) kV
Conductor: Waterproof, round aluminum rope
Insulation: XLPE (Cross-Linked Polyethylene)
Screen: Copper wires and tape
Waterblocking Tape: Longitudinal swellable tape
Tape: Longitudinal and Radial Water Blocking
Waterblocking Tape 2:Al/PET (Aluminium/Polyester) Radial Water Blocking
Outer Sheath: MDPE (Medium Density Polyethylene)
Main Application: designed for utility distribution networks, generation units, and industrial plant connections. Engineered for versatile deployment across direct burial, cable duct, indoor, and outdoor installations,where fire, smoke emission and toxic fume
create a potential risk to life and equipment.
When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for utility distribution networks, generation units, and industrial plant connections. Engineered for versatile deployment across direct burial, cable duct, indoor, and outdoor installations,where fire, smoke emission and toxic fume create a potential risk to life and equipment.
If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!
Conductor
Waterproof, round aluminum rope
Conductor screen
Semi-conductive plastic
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive plastic
Anti-shock protection
Layer of copper wires and copper strip
Sheath
Waterproof PE (Polyethylene)
Color
Customized as per standards
Voltage Rating
12/20 (24)kV
Temperature Rating
Operating: -20ºC to +90ºC
Minimum Bending Radius
Fixed: 8 x overall diameter
Short Circuit Temperature
250°C
Minimum Bending Radius
10 x overall diameter
IEC 60228
We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
