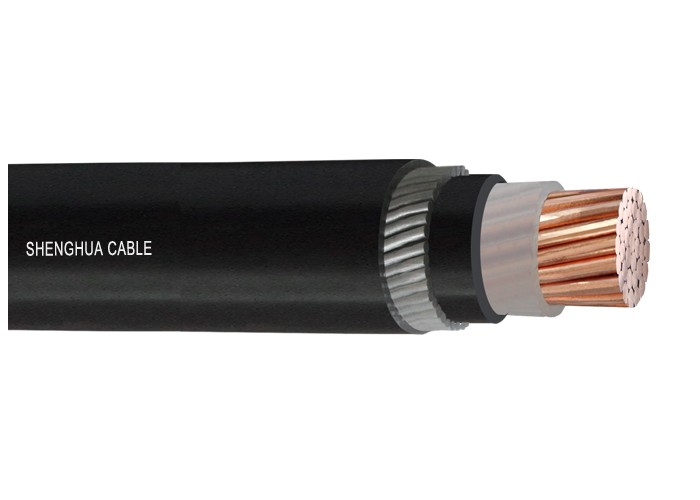

0.6/1kV CU Single Core AWA PVC Cable IEC/EN 60502-1

Application

When you are managing power networks and power distribution project, this MV cable is a good option, which is designed for main power and auxiliary fixed wiring within power distribution networks. Featuring robust mechanical protection, they are fully rated and approved for direct underground burial, routing through cable ducting, as well as secure indoor and outdoor installations.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

PVC (Polyvinyl Chloride)

Armour

AWA (Aluminium Wire Armour)

Sheath

PVC (Polyvinyl Chloride)

Color

Customized as per standards

Technical data

Voltage Rating

0.6/1kV

Temperature Rating

Fixed: -25°C to +90°C

Minimum Bending Radius

Fixed: 8 x overall diameter

Standards

BS 5467, IEC/EN 60502-1, IEC/EN 60228

Flame Retardant to IEC/EN 60332-1-2

UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
