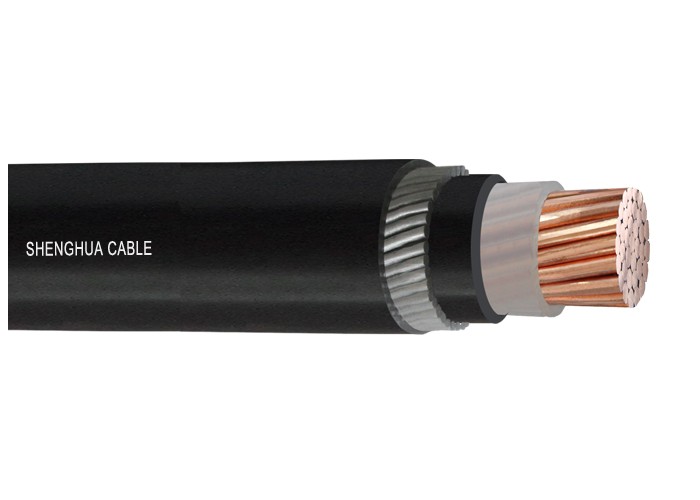

0.6/1kV CU Single Core AWA LSZH Cable IEC/EN 60502-1

Application

When you are managing power networks and power distribution project, this MV cable is a good option, which is designed for critical safety environments, these multi-core LSZH (Low Smoke Zero Halogen) Steel Wire Armoured (SWA) cables provide primary power and auxiliary fixed wiring for distribution networks. They are fully rated for indoor, outdoor, cable duct, and direct underground burial installations. The advanced LSZH construction ensures maximum safety in high-risk areas by strictly limiting fire propagation, smoke emissions, and toxic fumes, thereby safeguarding human life and vital equipment.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

LSZH (Low Smoke Zero Halogen)

Armour

SWA (Steel Wire Armour)

Sheath

LSZH (Low Smoke Zero Halogen)

Color

Customized as per standards

Technical data

Voltage Rating

0.6/1kV

Temperature Rating

Fixed: -25°C to +90°C

Minimum Bending Radius

1.5mm2 to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

Standards

BS 5467, IEC/EN 60502-1, IEC/EN 60228

Flame Retardant to IEC/EN 60332-1-2

UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
