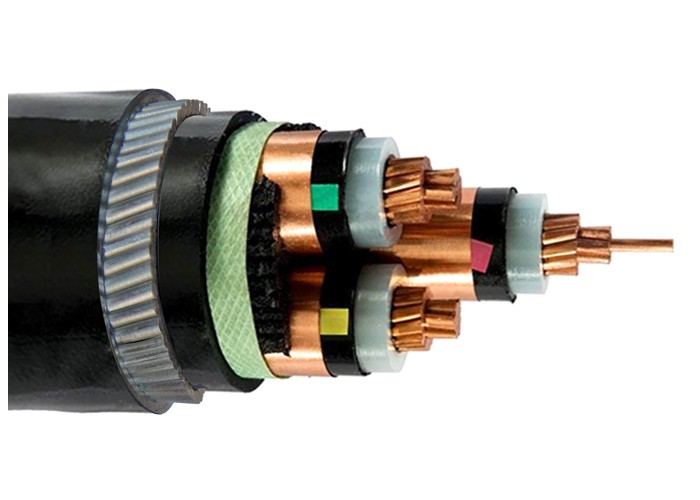

1.9/3.3kV CU Multi Core SWA LSZH Cable BS 5467/IEC 60502-1

Application

When you are managing power networks and power distribution project, this MV cable is a good option, which is designed for primary power distribution and auxiliary control circuits, these LSZH (Low Smoke Zero Halogen) cables provide exceptional installation versatility across power networks. They are fully rated for indoor and outdoor routing, cable ducting, and underground deployment. Crucially, their advanced halogen-free construction strictly limits smoke emissions and toxic fumes, making them essential for high-risk installations.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 sectoral shaped stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Filler

HFFR (Halogen free flame retardant)

Armour

SWA (Galvanised steel wire armour)

Outer Sheath

HFFR (Halogen free flame retardant)

Color

Customized as per standards

Technical data

Voltage Rating

1.9/3.3kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

12 x overall diameter

Standards

BS 6724, EN 60228

Flame retardant to IEC/EN 60332-1

Low Smoke Zero Halogen to IEC/EN 61034, IEC/EN 60754

UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
