1.9/3.3kV CU Single Core AWA LSZH Cable BS 6724

Application

When you are managing power networks and power distribution project, this MV cable is a good option, which is designed for critical safety environments, these multi-core LSZH (Low Smoke Zero Halogen) Steel Wire Armoured (SWA) cables provide primary power and auxiliary fixed wiring for distribution networks. They are fully rated for indoor, outdoor, cable duct, and direct underground burial installations. The advanced LSZH construction ensures maximum safety in high-risk areas by strictly limiting fire propagation, smoke emissions, and toxic fumes, thereby safeguarding human life and vital equipment.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

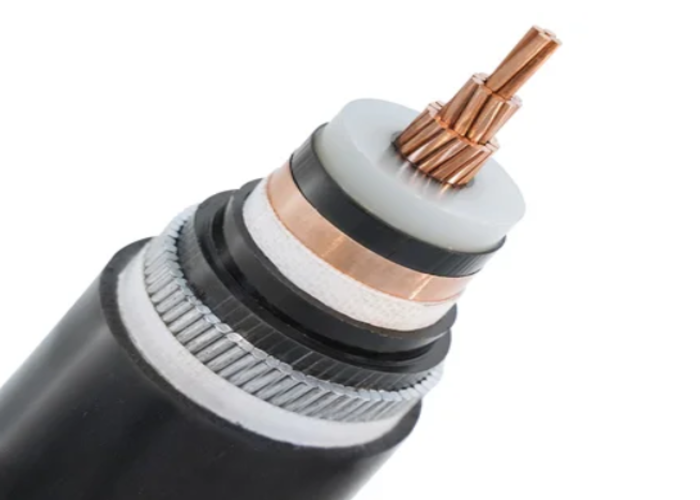

Structure

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Filler

HFFR (Halogen free flame retardant)

Armour

AWA (Aluminium Wire Armour)

Outer Sheath

HFFR (Halogen free flame retardant)

Color

Customized as per standards

Technical data

Voltage Rating

1.9/3.3kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

15 x overall diameter

Standards

BS 6724, EN 60228

Low Smoke Zero Halogen to IEC/EN 61034, IEC/EN 60754

Flame retardant to IEC/EN 60332-1

UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
