12/20(24)kV Aluminium XLPE Polylefin MV Cable IEC 60502-2/Halogen Free- IEC 60754-1/2

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for halogen-free generation units and industrial plant connections for direct undergroud burial and duct installations in utility networks.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

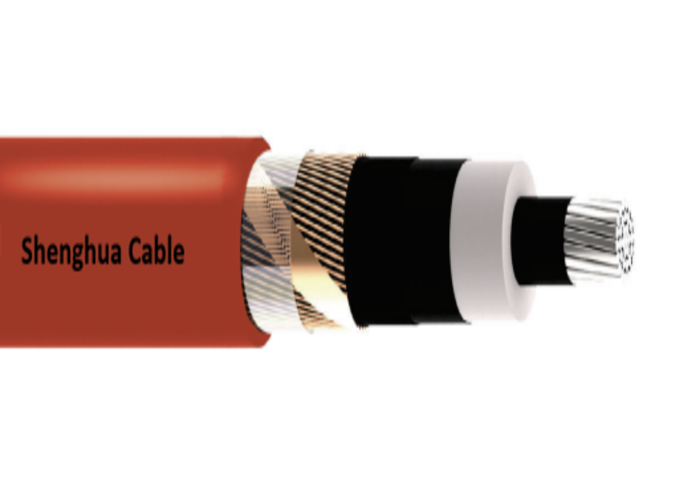

Structure

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material

Screen

Copper wires

Sheath

PO (Polylefin)

Color

Red

Technical data

Voltage Rating

12/20(24) kV

Temperature Rating

-20°C to +90°C

Minimum Bending Radius

15 x overall diameter

Standards

IEC 60502-2

Halogen Free- IEC 60754-1/2

UV Resistant: UNE 21160

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
