12/20(24) kV Aluminium XLPE Polylefin with Waterblocking MV Cable IEC 60502-2/Halogen Free- IEC 60754-1/2

Application

When you are managing medium voltage power networks and power distribution project need additional waterblocking properties, this MV cable is a good option, which is designed for halogen-free generation units and industrial plant connections for direct undergroud burial and duct installations in utility networks.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

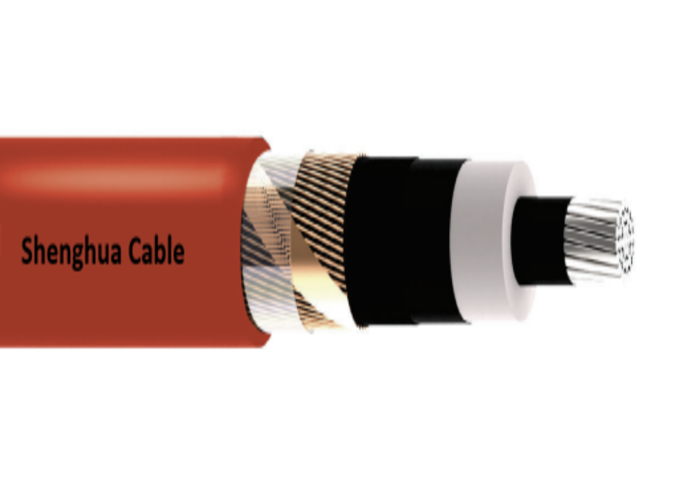

Structure

Conductor

Class 2 stranded aluminium with longitudinal water tightness

Conductor Screen

Semi-conductive material

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material

Longitudinal Waterblocking

Water-swellable tape

Screen

Copper wires

Longitudinal Waterblocking

Water-swellable tape

Sheath

PO (Polylefin)

Color

Red

Technical data

Voltage Rating

12/20(24) kV

Temperature Rating

-20°C to +90°C

Minimum Bending Radius

15 x overall diameter

Standards

IEC 60502-2

Halogen Free- IEC 60754-1/2

UV Resistant: UNE 211605

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
