12/20kV CU XLPE LSZH MV Cable IEC/EN 60332

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for utility distribution networks, generation units, and industrial plant connections. Engineered for versatile deployment across direct burial, cable duct, indoor, and outdoor installations,where fire, smoke emission and toxic fume create a potential risk to life and equipment.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

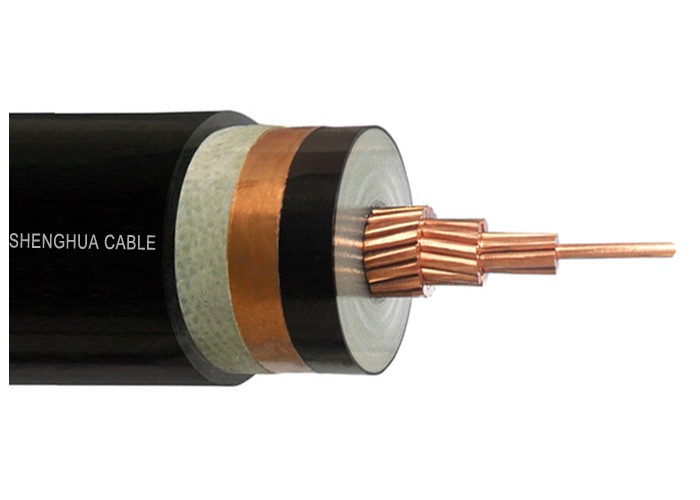

Structure

Conductor

Class 2 Stranded Copper

Inner Semi-Conductive Layer

Semi-Conductive Material

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi-Conductive Layer

Semi-Conductive Materia

Screen

Copper wires and tap

Tape

Longitudinal and Radial Water Blocking

Outer Sheath

LSZH (Low Smoke Zero Halogen) UV Resistant

Color

Customized as per standards

Technical data

Voltage Rating

12/20kV

Temperature Rating

Fixed: 0°C to +90°C

Maximum Conductor Short-Circuit Temp up to 5 sec: 250°C

Minimum Bending Radius

15x overall diameter

Standards

IEC/EN 60228

Fire Resistant to IEC/EN 60332-1-2, IEC/EN 60332-3-24 Cat.C

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
