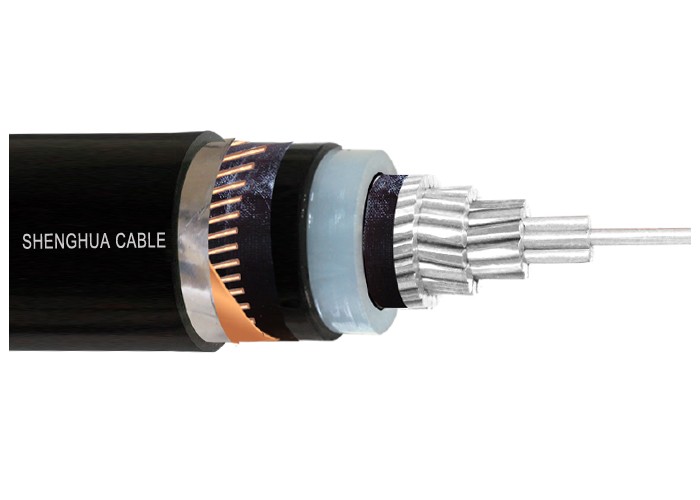

18/30 (36)kV Aluminium XLPE PVC MV Cable IEC 60502-2/IEC/EN 60228

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for direct undergroud burial,outdoors indoors and duct installations in utility networks..

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 stranded aluminium conductor

Conductor Screen

Semi-conductive material (Bonded Type)

Insulation

 XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (Strippable Type)

Screen

Copper wires with Open Helix Copper Tape Screen

Sheath

PVC (Polyvinyl Chloride)

Color

Identification as per international standards

Technical data

Voltage Rating

18/30 (36)kV

Temperature Rating

Fixed: -20°C to +70°C

Flexed: -5°C to +70°C

Minimum Bending Radius

15 x overall diameter

Standards

EN 60228, IEC 60502-2

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
