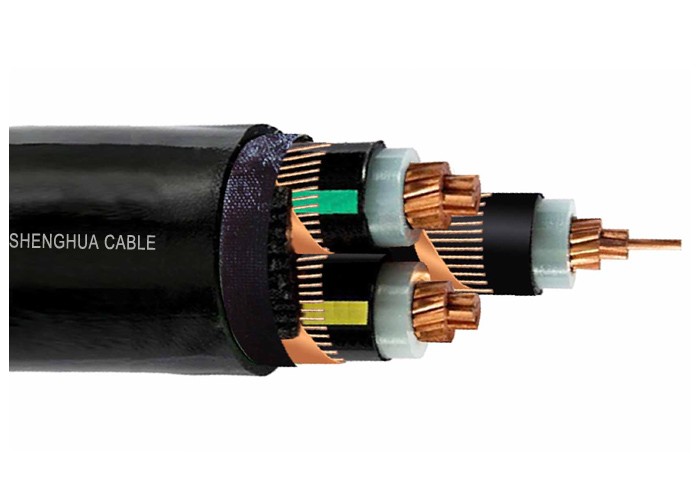

18/30 (36)kV Triplex XLPE LSZH MV Cable IEC 60502

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for medium voltage power networks and power distribution,generation units and industrial plant connections for direct undergroud burial in utility networks,UV resistant, Low smoke Halogen Free IEC 60754-1/2.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 Stranded Copper

Conductor Screen

Extruded Inner Semi Conductor (Bonded Type)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Extruded Outer Semi Conductor (Strippable Type)

Waterblocking

Semi Conductive Longitudinal waterblocking Tape

Aluminium Tape

Applied Longitudinally

Outer Sheath

MDPE (Medium Density Polyethylene)

Color

Customized as per standards

Technical data

Voltage Rating

18/30 (36)kV

Temperature Rating

Maximum Conductor Operating Temperature: +90ºC

Maximum Screen Operating Temperature: +80°C

Maximum Conductor Temperature During S.C: +250°C

Minimum Bending Radius

20 x overall diameter

Standards

IEC 60502-2

Halogen Free IEC 60754-1/2

Water Resistant EN60529- AD7

UV resistant to ISO 4892

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
