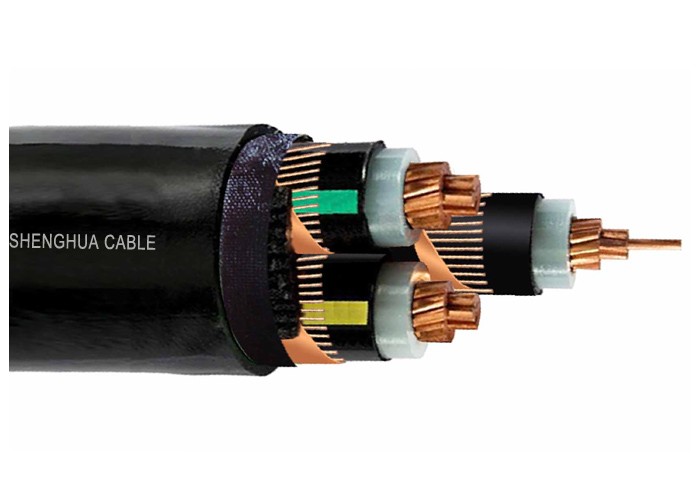

18/30 (36)kV XLPE Insulated PE MV Cable IEC 60502-2/IEC 6022

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for direct undergroud burial,outdoors indoors and duct installations in utility networks..

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive material

Insulation

 XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (bonded)

Screen

Copper wires and copper tape

Outer Sheath

MDPE (Medium Density Polyethylene)

Color

Identification as per international standards

Technical data

Voltage Rating

18/30 (36)kV

Temperature Rating

-20°C to +60°C

Permissible Conductor Operating Temperature: +90°C

Permissible Short Circuit Temperature up to 5 sec: 250°C

Minimum Bending Radius

15 x overall diameter

Standards

EN 60228, IEC 60502-2

UV Resistant: ISO 4892-3

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
