18/30 (36)kV XLPE Insulated PVC MV Cable IEC 60502-2/IEC/EN 60228

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for direct undergroud burial,outdoors indoors and duct installations in utility networks..

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

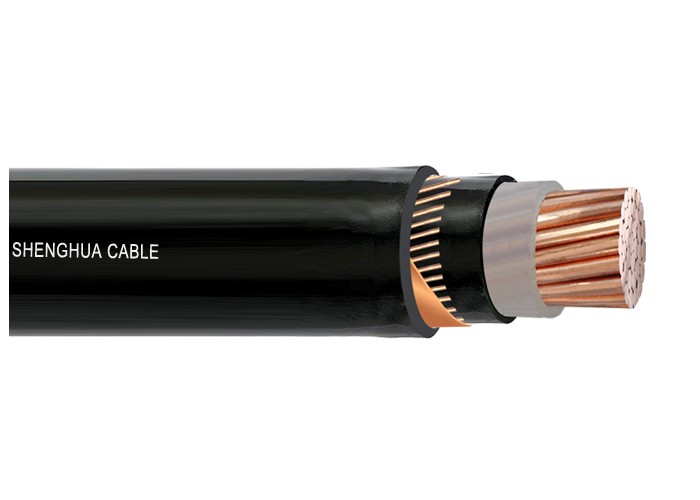

Structure

Conductor

Class 2 Stranded copper conductor

Conductor Screen

Semi-conductive material (Bonded Type)

Insulation

 XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (Strippable Type)

Screen

Copper wires with Open Helix Copper Tape Screen

Sheath

PVC (Polyvinyl Chloride)

Color

Identification as per international standards

Technical data

Voltage Rating

18/30 (36)kV

Temperature Rating

Maximum conductor operating temperature: 90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

15 x overall diameter

Standards

IEC 60502-2, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
