3.8/6.6kV CU XLPE AWA/SWA PVC MV Cable BS 6622, IEC/EN 60228

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for utility distribution networks, generation units, and industrial plant connections. Engineered for versatile deployment across direct burial, cable duct, indoor, and outdoor installations.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

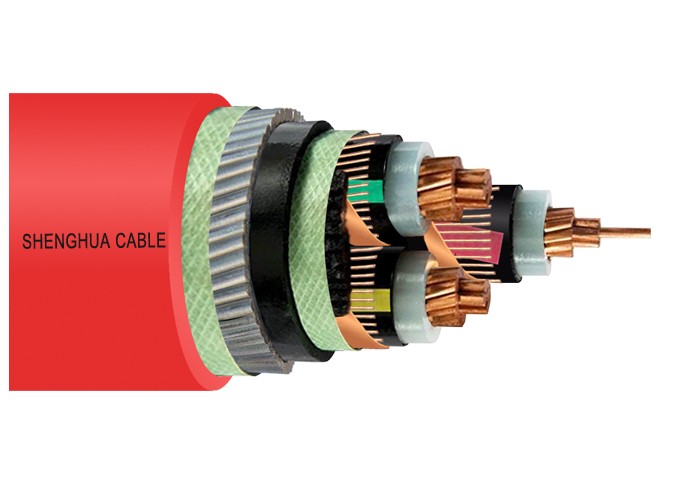

Structure

Conductor

Class 2 stranded copper conductor

Conductor Screen

Extruded Inner Semi Conductor (Bonded Type)

Insulation

XLPE (Cross-Linked Polyethylene)

Outer Semi Conductor

Extruded Outer Semi Conductor (Strippable Type)

Metallic Screen

Copper tape with 10% overlap

Inner Sheath

PVC (Polyvinyl Chloride)

Armour

Single core: AWA (Aluminium Wire)

Multi core: SWA (Galvanised steel wire)

Sheath

PVC (Polyvinyl Chloride)

Color

Customized as per standards

Technical data

Voltage Rating

3.8/6.6 (7.2) kV

Temperature Rating

Fixed: -15°C to +90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

Single core: 15x overall diameter

Multi core: 13 x overall diameter

Standards

BS 6622, IEC/EN 60228

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
