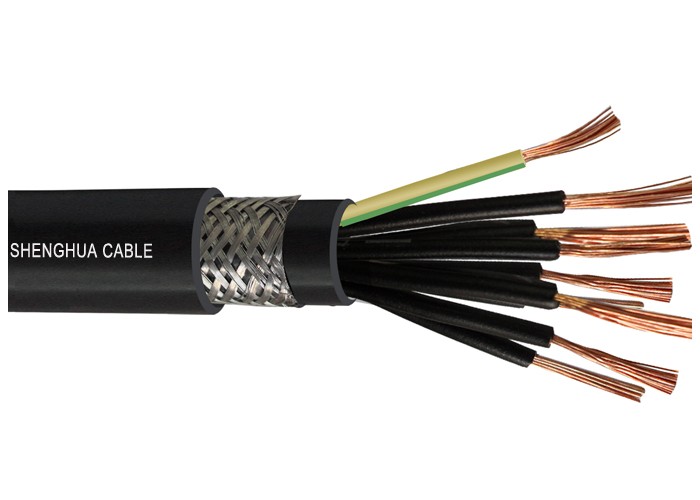

300/500V SY LSZH Control Flexible Control Cable

Application

When you are managing power networks and power distribution project, this cable is a good option, which is designed for maximum safety and reliability, this LSZH interconnecting cable is the premier choice for measuring, regulating, and control circuits across assembly lines, conveyors, and computer networks. Featuring a corrosion-resistant galvanized braided screen, it delivers robust mechanical protection alongside essential electromagnetic (EMC) shielding. It easily handles flexible applications under light mechanical stress. Suitable for dry or damp indoor environments—and outdoor use when shielded from direct UV exposure, Low smoke Zero Halogen property protects human life and critical equipment from toxic fumes and dense smoke during a fire.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible copper conductor

Insulation

LSZH (Low Smoke Zero Halogen)

Bedding

LSZH (Low Smoke Zero Halogen)

Braiding

GSWB (Galvanised Steel Wire Braid)

Sheath

LSZH (Low Smoke Zero Halogen)

Color

Customized as per standards

Technical data

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter

Standards

Flame Retardant according to IEC/EN 60332-1-2

IEC/EN 60332-3-24 Low Smoke Zero Halogen according to IEC/EN 61034-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
