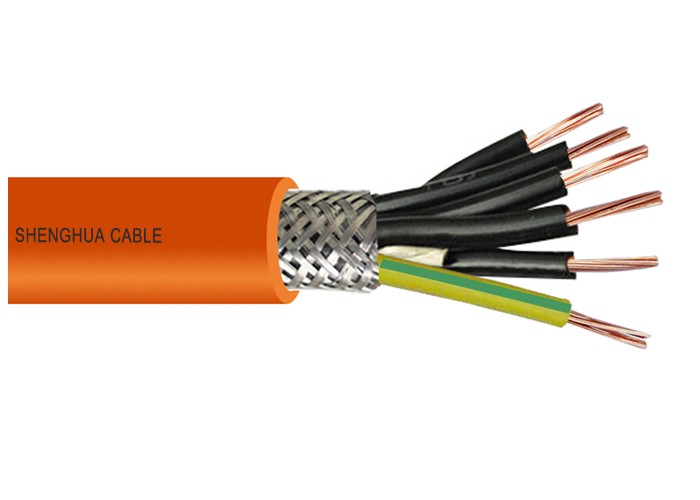

300/500V Screened LSZH (HSLCH) Control Cable

Application

When you are managing power networks and power distribution project, this cable is a good option, which is designed for instrumentation, control systems, and tooling machinery within mechanical engineering applications. Designed to accommodate free, unrestricted movement without tensile stress, they perform reliably in dry, damp, and wet indoor environments. An integrated braided screen effectively mitigates electromagnetic interference (EMI), while the inner bedding enhances mechanical durability.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible stranded plain copper

Insulation

LSZH (Low Smoke Zero Halogen)

Separator

PET (Polyester Tape)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

LSZH (Low Smoke Zero Halogen)

Color

Customized as per standards

Technical data

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -15°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

Standards

VDE 0207-363-3, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
