6.35/11 (12)kV Aluminium XLPE MDPE MV Cable BS 7870/BS EN 60228

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for medium voltage power networks and power distribution,generation units and industrial plant connections for direct undergroud burial in utility networks..

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

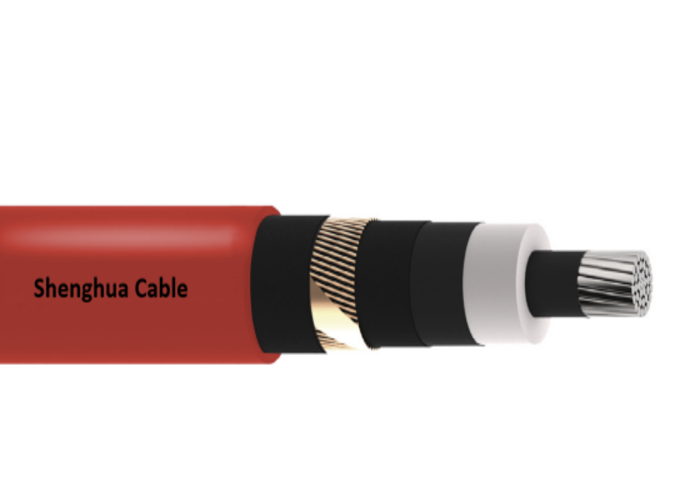

Structure

Conductor

Class 2 stranded aluminium

Conductor Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Bonded)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive extruded XLPE (Cross-linked Polyethylene) (Strippable)

Longitudinal Waterblocking

Semi-conductive waterblocking tape

Metallic Screen

Copper Wires And Open Helix Copper Tape

Longitudinal Waterblocking

Non-conductive waterblocking tape

Sheath

MDPE (Medium Density Polyethylene)

Color

Red

Technical data

Voltage Rating

18/30(36) kV

Temperature Rating

-20°C to +90°C

Minimum Bending Radius

15 x overall diameter

Standards

IEC 60502-2

Halogen Free- IEC 60754-1/2

UV Resistant: UNE 211605

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
