6.35/11 (12)kV SWA Armoured PVC MV Cable VDE 0271/IEC 60228/IEC 60332

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for utility distribution networks, generation units, and industrial plant connections. Engineered for versatile deployment across direct burial, cable duct, indoor, and outdoor installations.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

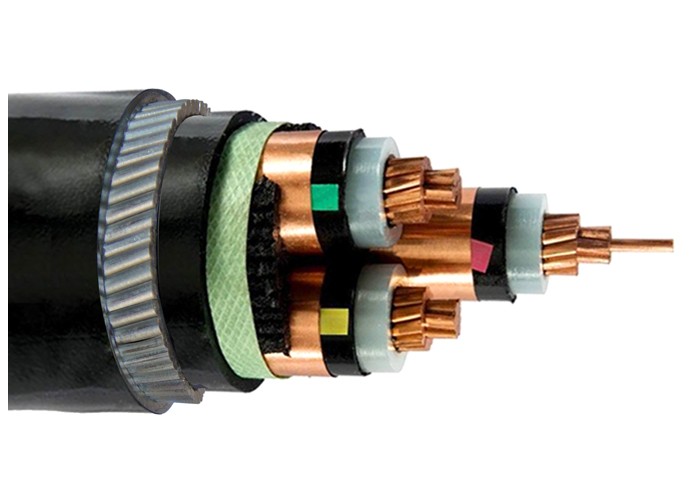

Structure

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Separator

Water blocking tape

Metallic Screen

Individual copper wire screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

PVC (Polyvinyl Chloride)

Armour

SWA (Steel Wire Armoured)

Sheath

MDPE (Medium Density Polyethylene)

Color

Customized as per standards

Technical data

Voltage Rating

6.35/11 (12)kV

Temperature Rating

Fixed: -25°C to +90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

12 x overall diameter

Standards

BS 6622, IEC 60502-2, IEC/EN 60228

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
