Aluminium XLPE LSZH Medium Voltage 12/20 (24)kV Cable IEC 60502-2, IEC 60228 Low Smoke Zero Haloge

Application

When you are managing power networks and power distribution project, this AWA/SWA MV cable is a good option, which is designed for direct undergroud burial and duct installations in utility networks. LSZH outer sheathing makes the cable suitable for internal installation as well as directly in ground, outdoors, and in cable ducts. UV Resistant.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

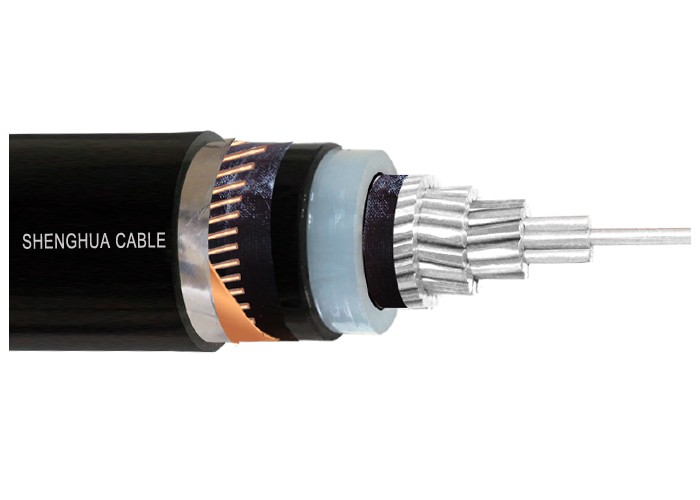

Structure

Conductor

Class 2 Stranded Aluminium

Conductor Screen

Semi-conductive materia

Insulation

 XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive material (bonded)

Longitudinal Waterblocking

Semi-conductive swellable tape

Screen

Copper wires and copper tape

Longitudinal Waterblocking

Swellable Tapes

Outer Sheath

LSZH (Low Smoke Zero Halogen)

Color

Identification as per international standards

Technical data

Voltage Rating

12/20 (24)kV

Temperature Rating

-20°C to +60°C

Permissible Conductor Operating Temperature: +90°C

Permissible Short Circuit Temperature up to 5 sec: 250°C

Minimum Bending Radius

15 x overall diameter

Standards

IEC 60502-2

Low Smoke Zero Halogen: IEC 60754-1/2, IEC 61034-2 Flame Retardant: EN 60332-3-24 Cat C, IEC 60332-1-2 UV Resistant: EN 50396

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
