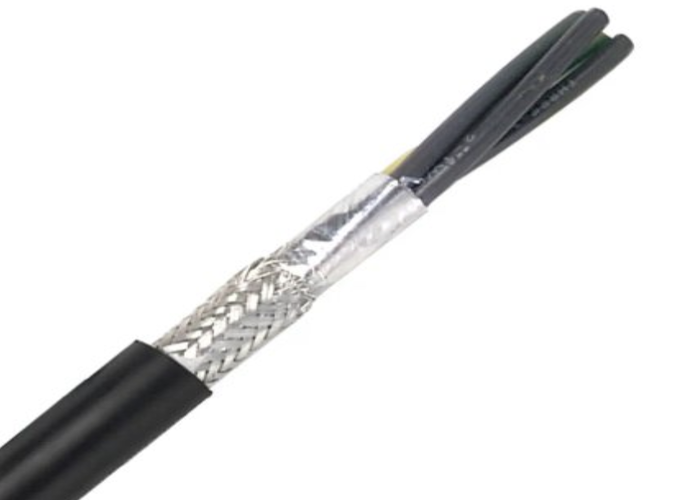

Servo Motor Cable

Application

This cable is designed to provide reliable power and feedback connectivity for electric drives and servo motors

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 6 Fine Stranded Bare Copper

Insulation

PP (Polypropylen)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PUR (Polyurethane)

Color

Identification as per international standards

Technical data

Voltage Rating

0.6/1kV

Operating Temperature:

Fixed: -50ºC to +80ºC

Installation: -40ºC to +80ºC

Minimum Bending Radius

Fixed: 5 x overall diameter

Flexed: 7.5 x overall diameter

Standards

EN 60811-404

Flame Retardant according to IEC/EN 60332-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
