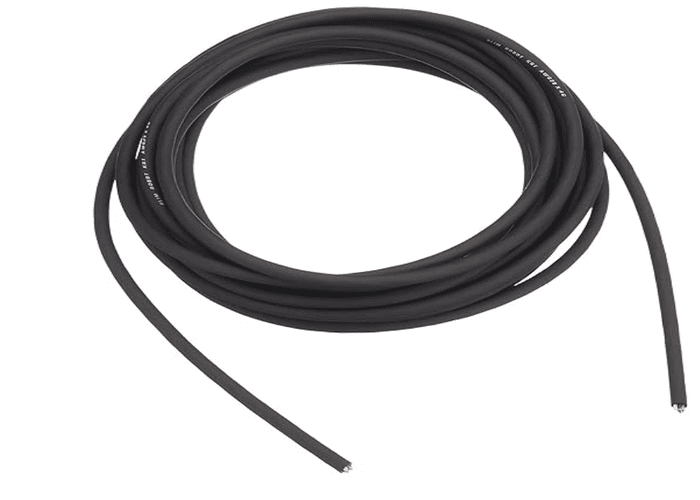

Robot Cable EN 50525-2-21 VDE 0285-525-2-21

Application

This cable is designed for robotic dresspacks, power chains, automated handling systems, and machine tools in industrial and automotive manufacturing.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 6 Fine Stranded Bare Copper

Insulation

TPE/PP (Thermoplastic Elastomer / Polypropylene)

Taping

PTFE foil wrapping

Outer Sheath

PUR (Polyurethane)

Color

Identification as per international standards

Technical data

Voltage Rating

300/500V

Operating Temperature:

Fixed: -50ºC to +80ºC Installation: -40ºC to +80ºC

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 7.5 x overall diameter

Standards

EN 50525-2-21

VDE 0285-525-2-21

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
