CU XLPE/PVC Medium Voltage 19/33 (36)kV Cable BS 6622, EN 60228, IEC 60502-2

Application

When you are managing power networks and power distribution project, this AWA/SWA MV cable is a good option, which is designed for direct undergroud burial and duct installations in utility networks..

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

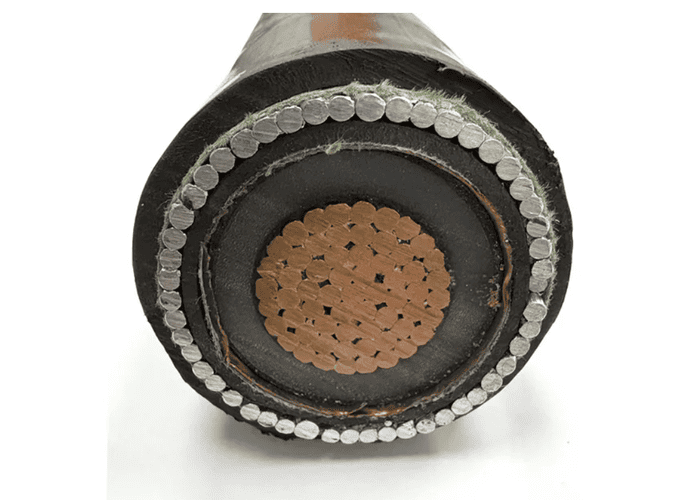

Structure

Conductor

Class 2 Stranded Circular Compacted Copper

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

 XLPE (Cross-Linked Polyethylene)

Metallic Screen

Individual or collective overall copper tape screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

PVC (Polyvinyl Chloride)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Galvanised Steel Wire Armoured)

Outer Sheath

PVC (Polyvinyl Chloride)

Color

Identification as per international standards

Technical data

Voltage Rating

6.35/11 (12)kV

Temperature Rating

Fixed: -15°C to +90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

Fixed: 15 x overall diameter

Standards

BS 6622, EN 60228, IEC 60502-2

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
