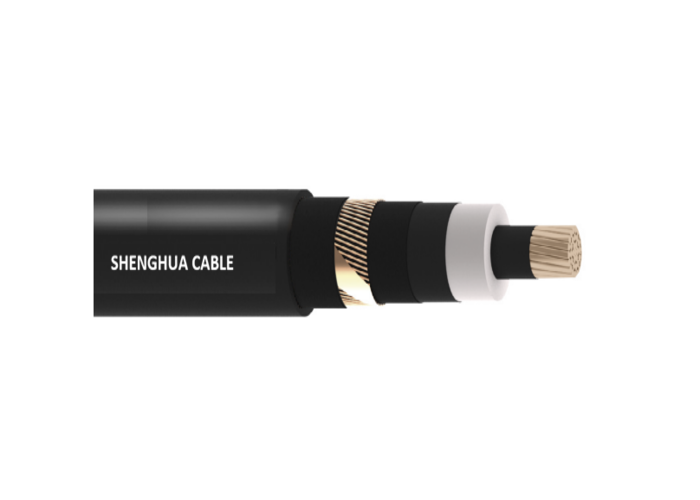

6.35/11 (12)kV Single Core Unarmoured LSZH Cable BS 7870/IEC 60502-2

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for medium voltage power networks and power distribution,generation units and industrial plant connections for direct undergroud burial in utility networks.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 Stranded Circular Compacted Aluminum

Conductor Screen

Extruded Inner Semi Conductor (Bonded Type)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Extruded Outer Semi Conductor (Bonded Type)

Screen

Copper Wires With Open Helix Copper Tape

Outer Sheath

MDPE (Medium Density Polyethylene)

Color

Customized as per standards

Technical data

Voltage Rating

19/33 (36) kV

Temperature Rating

Maximum Conductor Operating Temperature: +90ºC

Maximum Screen Operating Temperature: +80°C

Maximum Conductor Temperature During S.C: +250°C

Minimum Bending Radius

20 x overall diameter

Standards

BS 7870-4.10, IEC/ EN 60228 UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
