19/33kV Copper Single Core Unarmoured LSZH Cable BS7870-4.10

Application

When you are managing medium voltage power networks and power distribution project, this MV cable is a good option, which is designed for medium voltage power networks and power distribution,generation units and industrial plant connections for direct undergroud burial in utility networks.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

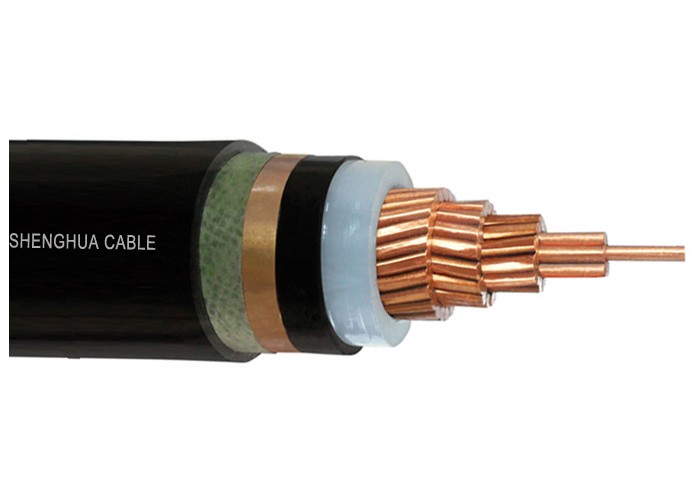

Structure

Conductor

Class 2 Stranded Copper

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene) - Fully bonded

Paper separation tapes

Metallic Screen

Copper Wires

Sheath

LSZH (Low Smoke Zero Halogen)

Color

Customized as per standards

Technical data

Voltage Rating

19/33 (36)kV

Temperature Rating

Conductor maximum operating temperature: 90°C

Maximum short-circuit temperature: 250°C

Minimum Bending Radius

10 x overall diameter

Standards

BS 7870-4.10, IEC 60502-2

IEC/EN 60754-1/2, IEC/EN 61034-1/2, IEC/EN 60332-1-2 UV Resistant

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
