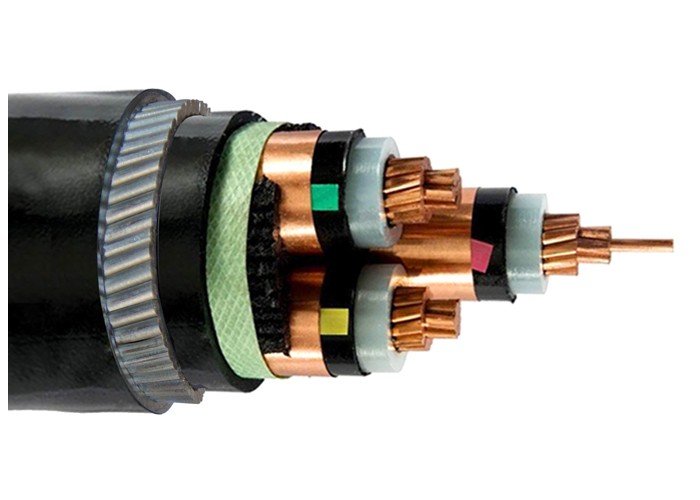

CU XLPE AWA/SWA PVC 6.35/11 (12)kV MV Cable IEC 60502-2/IEC/EN 60228

Application

When you are managing power networks and power distribution project, this AWA/SWA MV cable is a good option, which is designed for direct undergroud burial and duct installations in utility networks..

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 2 Stranded Circular Compacted Copper

Conductor Screen

Extruded Inner Semi Conductor (Bonded Type)

Insulation

 XLPE (Cross-Linked Polyethylene)

Outer Semi Conductor

Extruded Outer Semi Conductor (Strippable Type)

Metallic Screen

Copper tape with 1 0% overlap

Inner Sheath

PVC (Polyvinyl Chloride)

Armour

Single core: AWA (Aluminium Wire Armoured)

Multi-core: SWA (Galvanised Steel Wire Armoured)

Outer Sheath

PVC (Polyvinyl Chloride)

Color

Identification as per international standards

Technical data

Voltage Rating

6.35/11 (12)kV

Temperature Rating

Fixed: -15°C to +90°C

Initial temperature at S.C.C for metallic screen: 80°C

Maximum conductor temperature during S.C: 250°C

Minimum Bending Radius

Single core: 15 x overall diameter

Multi core: 12 x overall diameter

Standards

BS 6622, IEC 60502-2, IEC/EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
