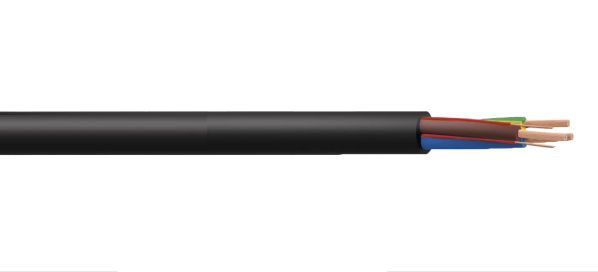

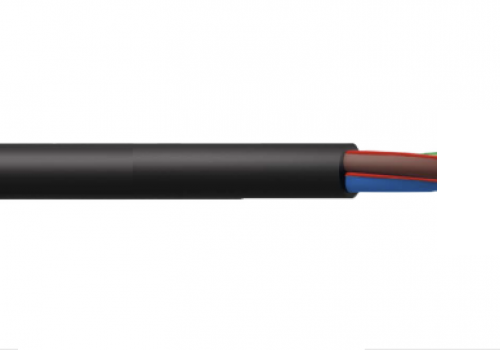

EV Car Mode 4 Connection PUR Cable EN 50620/ IEC 62893

Application

When you are managing AC charging stations or wallboxes for electric vehicles, this PUR cable is a good option, which is designed to connect AC charging stations (Mode 4) and wallboxes for electric vehicles with highly flexible, drive-over resistant, UV/oil resistant, Halogen-free LSZH.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 6 Fine Flexible Copper

Insulation

Rubber Compound type EV1-2

Control/Pilot Cores

Class 5 Flexible Copper with Rubber insulatio

Sheath

PUR-HF (Polyurethane, Halogen-Free)

Color

Identification as per international standards

Technical data

Voltage Rating

1500V DC

Operating Temperature

3500V DC (2000V control/pilot cores)

Temperature Range

-40ºC to +90ºC

Maximum Short Circuit Temperature

+160ºC

Minimum Bending Radius

5 x overall diameter

Maximum Tensile Load

15 N/mm²

Standards

IEC 62893, EN 50620, ISO 61851, EN/IEC 60228, IEC 60332-1-2, IEC 60811-403/4, ISO 4892

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
