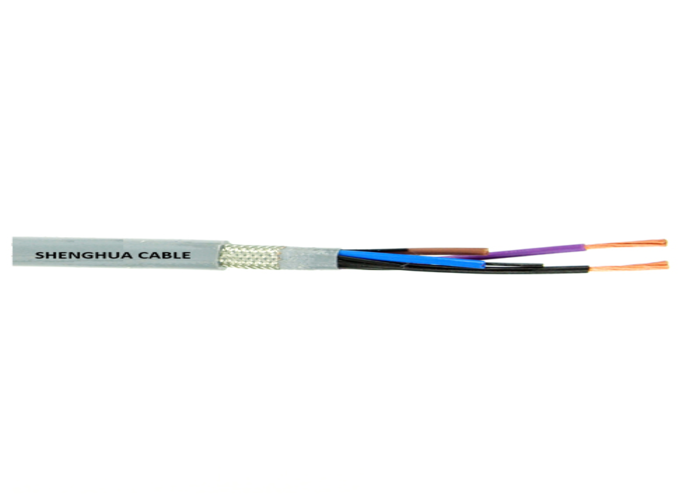

Drag Chain Cable

Application

This cable is designed for continuous movement in harsh indoor/outdoor environments. Features halogen-free, flame-retardant, and chemical-resistant properties for industrial use.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 6 Fine Stranded Bare Copper

Insulation

TPE/PP (Thermoplastic Elastomer / Polypropylene)

Inner Sheath

PUR (Polyurethane)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PUR (Polyurethane)

Color

Identification as per international standards

Technical data

Voltage Rating

300/500V

Operating Temperature:

Fixed: -50ºC to +80ºC Installation: -40ºC to +80ºC

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 7.5 x overall diameter

Standards

VDE 0482-332-1-2, EN 60811-404

Fire Retardant according to: IEC/EN 60332-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
