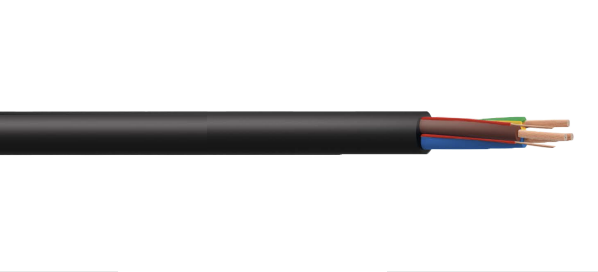

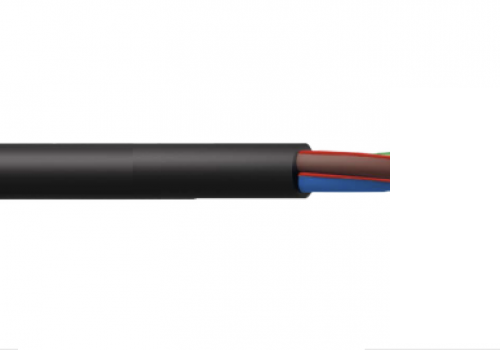

H07BZ5-F EV Car Mode 3 Connection Cable EN 50620/ IEC 62893

Application

When you are managing AC charging stations or wallboxes for electric vehicles, this PUR cable is a good option, which is designed to connect AC charging stations (Mode 3) and wallboxes for electric vehicles with highly flexible, drive-over resistant, UV/oil resistant, Halogen-free LSZH.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible stranded Copper

Insulation

Rubber Compound type EV1-2

Control/Pilot Cores

Class 5 Flexible Copper with Rubber insulatio

Sheath

PUR-HF (Polyurethane, Halogen-Free)

Color

Identification as per international standards

Technical data

Voltage Rating

300/500V

Operating Temperature

Operating: -40°C to +90°C

Minimum installation and use temperature: -40°C

Maximum temperature of short circuit: +250°C

Minimum Bending Radius

6 x Overall Diameter

Standards

EN 50620, IEC 62893, EN/IEC 60228, IEC 60811-404, IEC 60332-1-2, IEC 60811-100, EN 62230, IEC 61851-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
