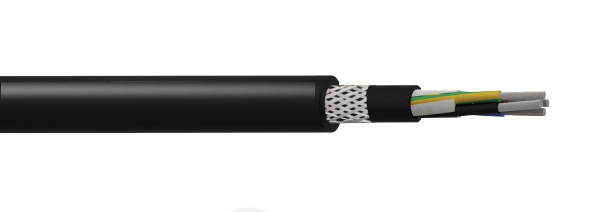

PUR-C-HF EMC Festoon PUR Cable IEC 60502 & VDE 0250

Application

When you are managing Festoon systems or chain systems like cranes, hoists and conveyors, this PUR cable will be a good choice, which is designed to be used in , which has EMC compliant with tinned copper braid shield for VFD and sensitive signal transmission.PUR sheath protects from abrasion and oil resistant. Halogen-free LSZH provides highly flexible for continous bending.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

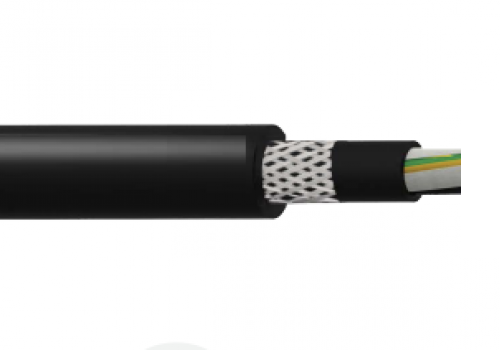

Structure

Conductor

Class 5 flexible stranded Copper

Insulation

Halogen free compound

Lay Up

Central textile strength member, cores laid up in concentric layers

Inner Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Screen

TCWB (Tinned copper wire braid) coverage min. 80%

Outer Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Color

Identification as per international standards

Technical data

Voltage Rating

0.6/1kV

Operating Temperature

Fixed installation: -50°C to +90°C

Mobile operation: -40°C to +90°C

Minimum Bending Radius

Fixed : 6 x Overall Diameter

Mobile: 8 x Overall Diameter

Maximum Tensile Load

15 N/mm²

Maximum Torsion

±25º/m

Travel Speed

Festoon Systems: Up to 200m/min

Reeling: Up to 60m/min horiz. / Up to 200m/min vertical

Chain Systems: Up to 200m/min vertical

Standards

IEC 60502, IEC 60228, DIN VDE 0293-308, DIN VDE 0472-501-503/508, DIN VDE 0472-303/401/402/602/615 DIN VDE 0250-1 IEC 60332-1 HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
