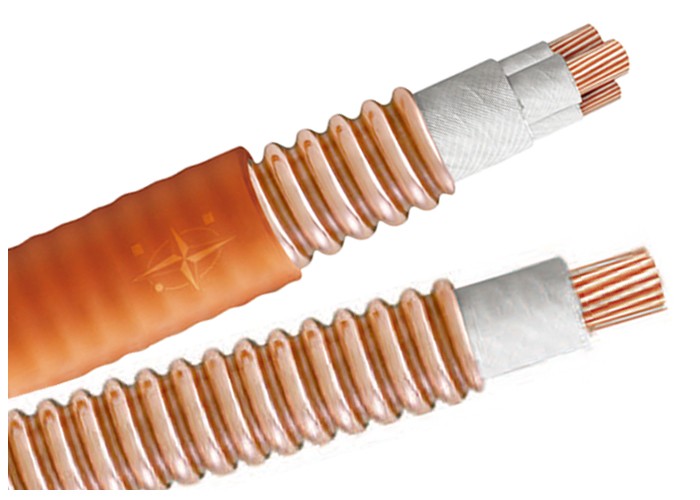

Mineral Insulated Fire-Resistant Cable

Application

This unshielded cable is designed to withstand extreme temperatures, Mineral Insulated (MI) fireproof cables ensure the continuous operation of critical life-safety systems across high-rises, transport infrastructure, and petrochemical plants.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 1 Solid plain copper conductor

Insulation Material

Magnesium Oxide (MgO)

Copper Sheath

Seamless Copper Corrugated Tube

Outer Sheath

Low Smoke Zero Halogen (LSZH)

Technical data

Voltage Rating

Light Duty: 500 Volts grade

Heavy Duty: 1000 Volts grade

Operating Temperature:

-10°C to +250°C

Minimum Bending Radius

6 x overall diameter

Standards

BS 6387/BS EN 60702/BS 6207

Flame Retardant according to IEC/EN 60332-1-2

Halogen Free according to IEC/EN 60754-1/2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
