VFD Cables vs. Standard Power Cables: Core Technical Differences

While standard power cables are designed for stable 50Hz alternating current, Variable Frequency Drive (VFD) cables are engineered to handle the complex electrical demands of dynamic VFD systems, including high-frequency pulses, harmonic interference, and transient voltage spikes.

1. Core Construction

• Standard: Typically utilizes an asymmetric 3+1, 4, or 5-core layout sufficient for general power distribution without electromagnetic balance requirements.

• VFD: Features a symmetrical 3+3 design (3 phase conductors + 3 independent ground wires). This balanced geometry neutralizes parasitic capacitance and inductance, significantly reducing high-frequency harmonic currents and voltage deviations.

2. Shielding System (EMI Protection)

• Standard: Generally unshielded or equipped with basic single-layer shielding, as standard 50Hz environments generate minimal electromagnetic fluctuation.

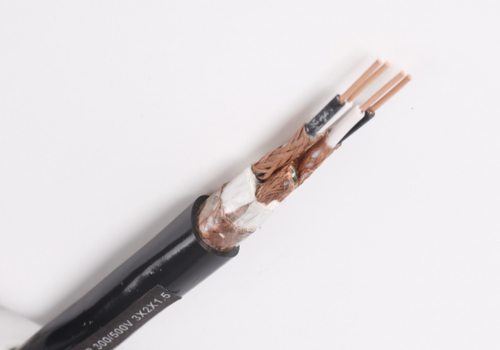

• VFD: Employs a robust, multi-layer composite shield (e.g., individual core shielding combined with an overall copper tape and wire braid). This provides total EMI containment, protecting nearby PLCs, sensitive instrumentation, and control systems from radiation.

3. Insulation & Voltage Endurance

• Standard: Uses conventional insulation tested strictly for stable 50Hz frequencies. It degrades rapidly when exposed to VFD high-frequency pulses.

• VFD: Utilizes specially modified, high-purity insulation with uniform thickness. It is engineered to withstand severe high-frequency pulses, harmonic impacts, and transient voltage spikes, preventing localized discharge and insulation breakdown.

4. Electrical Transmission Properties

• Standard: Optimized for fixed 50Hz sine waves. Under dynamic frequencies, it suffers from severe waveform distortion, voltage reflection, and high-frequency power loss.

• VFD: Optimized for 0-400Hz wideband transmission and PWM pulse waveforms. Its low capacitance, low inductance, and low transfer impedance prevent voltage reflection and motor insulation damage during long-distance transmission.

5. Application Scenarios

• Standard: Ideal for stable environments like urban power grids, commercial wiring, and fixed-speed motor supply.

• VFD: Essential for industrial automation, metallurgy, mining, paper mills, CNC machining, and any environment requiring precise motor speed control and high electromagnetic compatibility.

6. Lifespan & Reliability

• Standard: Subjecting standard cables to VFD systems leads to rapid aging, electrical shorts, and extremely high failure rates.

• VFD: Purpose-built for harsh dynamic environments. It offers superior resistance to aging, uniform heat dissipation, and long-term operational stability, significantly lowering project maintenance costs.
