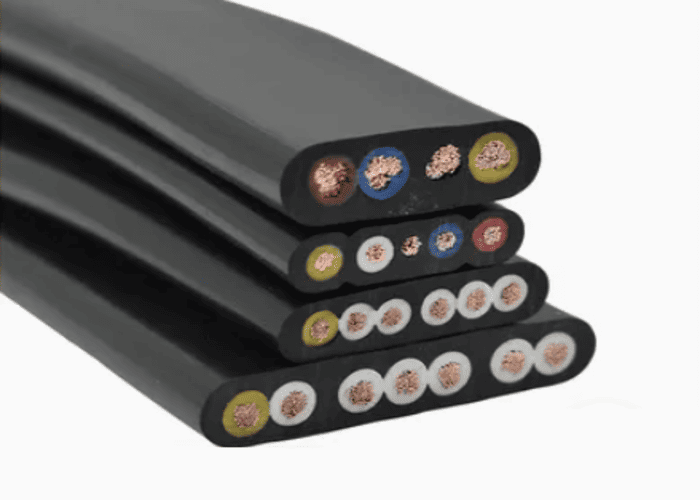

Crane Flat Cable Power Supply Series

Application

This unshielded cable is designed for severe mechanical stress, this heavy-duty flexible cable delivers reliable power and signaling for winding reels in harbor cranes, conveyors, and mining equipment. Its halogen-free polyurethane (PUR) sheath ensures lightweight durability and exceptional abrasion resistance.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 Flexible Tinned Copper

Insulation

Rubber compound

Inner Sheath

Halogen free PUR (Polyurethane)

Antitwisting

Element Polyester Braid

Outer Sheath

Halogen free PUR (Polyurethane)

Color

Identification as per international standards

Technical data

Voltage Rating

0.6/1kV

Test Voltage

4kV

Maximum Torsional Stress: ± 25°/m

Maximum Tensile Load: 30N/mm2

Maximum Working Speed: 180m/min

Operating Temperature:

Flexing: -40°C to 90°C

Flexed: -50°C to 90°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexing: 5 x overall diameter

Standards

Based on VDE 0240 Part 814, VDE 0295, IEC 60228, VDE 0250, VDE 0293, VDE 0207, VDE 0298, IEC 60811-404, IEC 60811-403, ISO 4892-2

Flame Retardant according to IEC/EN 60332-1-2

Special Test: Reeling test

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
