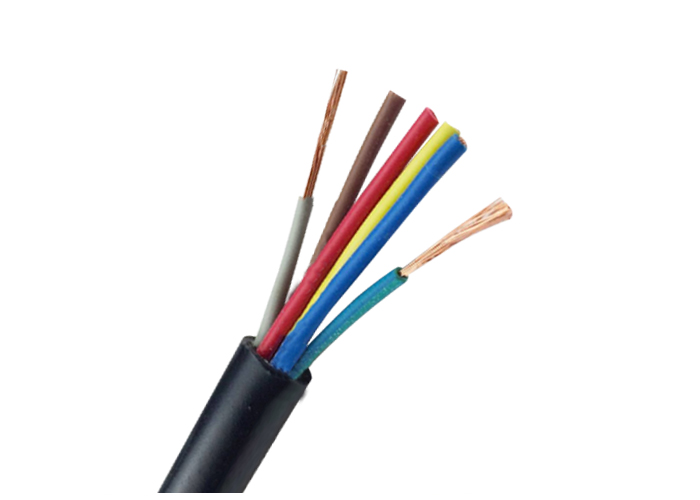

EAC Certificate Multi-Conductor Control and Instrumentation Cable

Application

This cable is designed for general-purpose, unshielded multi-pair cable is designed for audio, control, and instrumentation applications.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

Structure

Conductor

Class 5 flexible stranded bare copper

Insulation

PVC (Polyvinyl Chloride)

Sheath

Special PVC-Compound (Polyvinyl Chloride)

Color

Identification as per international standards

Technical data

Voltage Rating

0.6/1kV

Operating Temperature

Fixed: -20ºC to +70ºC

Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed Installation: 4 x overall diameter

Flexed Application: 7.5 x overall diameter

Standards

IEC/EN 60811-404

Fire Retardant according to: IEC/EN 60332-1-2

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
