PUR-HF Lift Trailing halogen free PUR Cable IEC 60502 & VDE 0250

Application

When you are managing vertical platfom lifts or vertical reeling systems,  this heavy-duty PUR lift cable is a good option, which is designed to withstand high mechanical stress of torsion, tension and torque.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

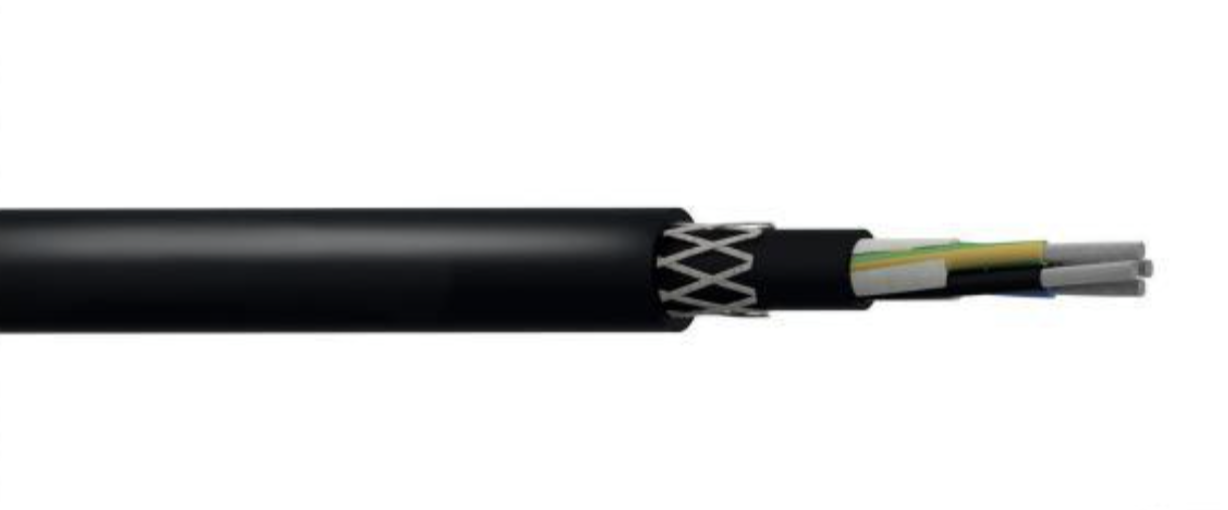

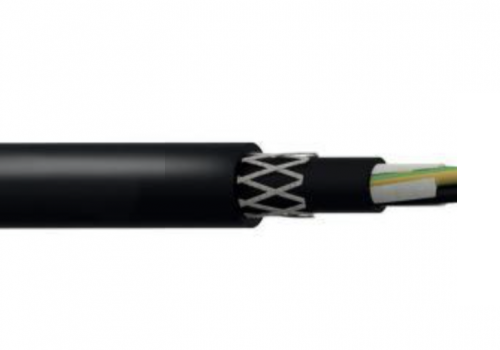

Structure

Conductor

Class 5 or Class 6 flexible stranded plain annealed copper

Insulation

LSZH (Low Smoke Zero Halogen)

Lay Up

Central textile strength member, cores laid up in concentric layers

Inner Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Braid

Anti-twisting Textile braid

Outer Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Color

Identification as per international standards

Technical data

Voltage Rating

0.6/1kV

Operating Temperature

Fixed installation: -50°C to +90°C

Mobile operation: -40°C to +90°C

Minimum Bending Radius

Fixed : 6 x Overall Diameter

Mobile: 8 x Overall Diameter

Maximum Tensile Load

20 N/mm2 Maximum Torsion +/- 25o/m

Travel Speed

Festoon systems: up to 200m/min

Reeling applications: up to 200m/min horizontal

Minimum Distance for Change of Direction

20x Overall Diameter

Standards

IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250, DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1 and IEC 60502, IEC 60332-1 HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
