What is Instrumentation Cable Used For

What is Instrumentation Cable Used For?

Instrumentation Cables are the "nervous system" of modern industrial facilities. They are multiple-conductor cables designed to transmit low-energy electrical signals used for monitoring or controlling chemical, thermal, and electrical processes.

While power cables carry the "muscle" (high voltage/current), instrumentation cables carry the "senses"—connecting sensors (transmitters) to controllers (PLC, DCS) and computers.

Core Technical Characteristics

The primary goal of an instrumentation cable is signal integrity. To achieve this, they utilize several specialized design features:

1. Superior Shielding (The Shield is Key)

Because these cables carry sensitive analog signals (like 4-20mA), they are highly susceptible to Electromagnetic Interference (EMI).

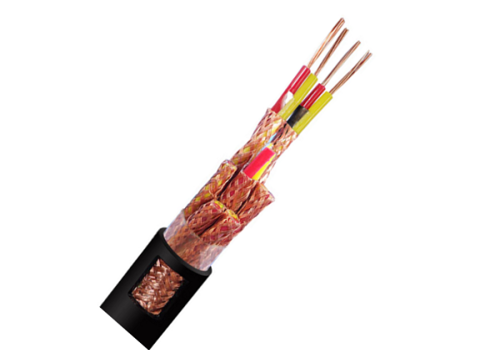

• Individual Shielding (IS): Each pair is wrapped in its own foil/braid to prevent "crosstalk" between different signals within the same cable.

• Overall Shielding (OS): A single shield surrounds the entire bundle to block external noise from nearby motors or power lines.

2. Twisted Pair Construction

By twisting two conductors together, any external electromagnetic field affects both wires equally. This creates "Common Mode Rejection," where the noise is canceled out at the receiving end.

3. Electrical Specifications

• Voltage Rating: Usually low, typically 300V or 500V.

• Conductor Material: Usually high-purity annealed copper (plain or tinned) to ensure maximum conductivity and corrosion resistance.




Instrumentation vs. Control Cables: The Critical Difference

These two are often confused, but using the wrong one can lead to system failure or dangerous signal inaccuracies.
