PUR-HF Sheath LSZH LV Reeling Cable IEC 60502 & VDE 0250

Application

When you are managing facilities in extreeme industrial enviroments such as port, mining and steel metallurgy,  this heavy-duty PUR reeling cable is designed for application with high mechanical strength, such as high resistance to tension, torsion, and torque.With PUR sheath protection, it will resistant to oil, solvents, alkalines and hydrolysis.

If you need specification beyond our standard range, please contact with us by email , tailored quotation will be in your inbox!

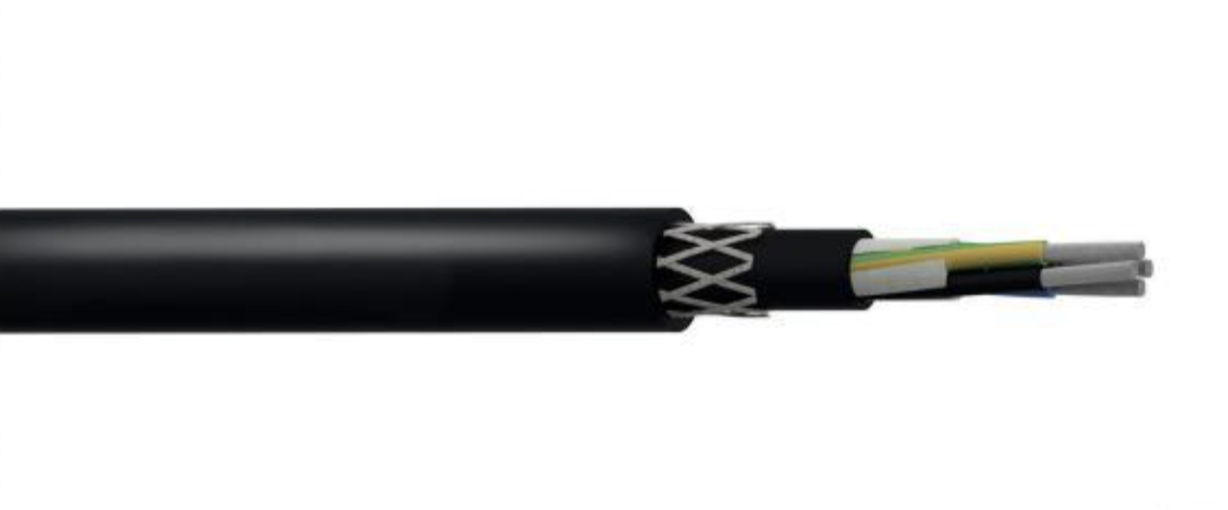

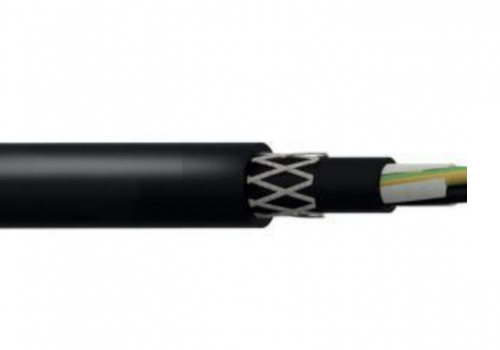

Structure

Conductor

Class 5 Flexible Copper Conductor

Insulation

LSZH (Low Smoke Zero Halogen)

Lay Up

Central textile strength member, cores laid up in concentric layers

Inner Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Braid

Anti-twisting Textile braid

Outer Sheath

PUR-HF (Polyurethane, halogen free flame retardant)

Color

Identification as per international standards

Technical data

Voltage Rating

0.6/1kV

Operating Temperature

Fixed installation: -50°C to +90°C

Mobile operation: -40°C to +90°C

Minimum Bending Radius

Fixed : 6 x Overall Diameter

Mobile: 8 x Overall Diameter

Maximum Tensile Load

20 N/mm2 Maximum Torsion +/- 25o/m

Travel Speed

Festoon systems: up to 200m/min

Reeling applications: up to 200m/min horizontal

Minimum Distance for Change of Direction

20x Overall Diameter

Standards

IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250, DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1 and IEC 60502, IEC 60332-1 HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1

Certificates

We have certificates such as KEMA/CE/TUV/UL/GOST/EAC/RoHS/CNAS under international standards
